- Individual measurement of top oil temperature, bottom oil temperature, ambient temperature, tap changer oil temperature, tap changer position, load current and load voltage
- Transmission interface with 7 analog outputs 4 ... 20 mA
- Direct integration into HYDROCAL 1003, 10051)
, 1008 1) , 1009 1) and HYDROTAP1) hardware, firmware and software
- Complete on-line transformer monitoring extension package including cabinet, cable glands, power supply, circuit breakers, terminal connectors, anti condensation heater & thermostatic sensor, wiring, measurement sensors, measurement transducers, connection cable, transmission cable and wiring diagram
- All information provided to use the HYDROCAL standard functions hot-spot calculation, aging rate and loss-of-life according IEC 60067-7
- Prewired transmission cable on cabinet side – 10 m
- Connection cable (one single piece) for individual wiring of
sensors / transducer

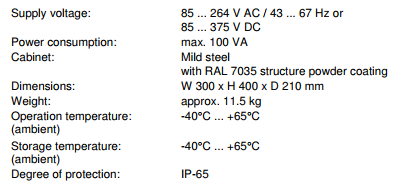

Thông số kỹ thuật
