Dynamic Range : >150dB (1Hz IF bandwidth)
Time domain and gating conversion included
Two Independent Signal Sources
Frequency offset mode, including vector mixer calibration measurements
Up to 16 logical channels with 16 traces each
Multiple precision calibration methods and automatic calibration
Frequency Range : 100kHz ~ 8GHz, 16 Parameters support (S11 ~ S44)
Measurement time per point : 100us per point
Wide Output Power Range : -60dBm to +10dBm
Up to 500,001 measurement points
Fixture simulation
COM/DCOM compatible for LabView and automation programming

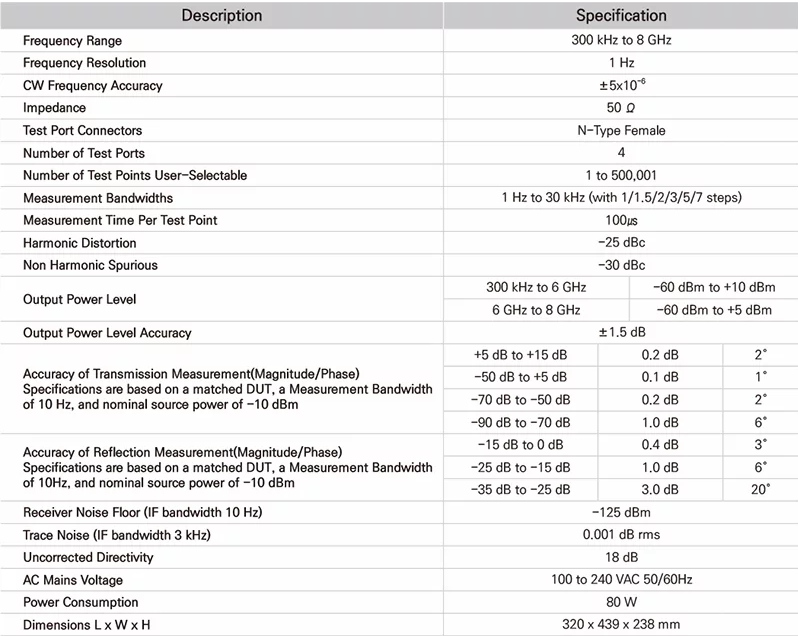

Thông số kỹ thuật
Mời bạn tìm hiểu thêm Vector Network Analyzer A336M
