1M waveform memory, 2M/4M optional
16Vp-p into 50Ω standard, 20Vp-p into 50Ω (option 3)
Multiple run modes: trigger, timer and trigger delay
AM, FM, Arbitrary FM, FSK, ASK, (n)PSK, (n)QAM, Frequency Hop, 3D and sweep
Powerful sequence generator links and loops segments in user-defined fashion
Stores up to 10 different sequence tables
16 Bit LVDS parallel output
Dual Channel 250MS/s waveform generator
Sine waves to 100MHz and Square to 62.5MHz
16 Bit amplitude resolution
High resolution 3.8” LCD, color display
LAN, USB and GPIB interfaces
Multi-Instrument synchronization
Free ArbConnection software, IVI and MATLAB drivers

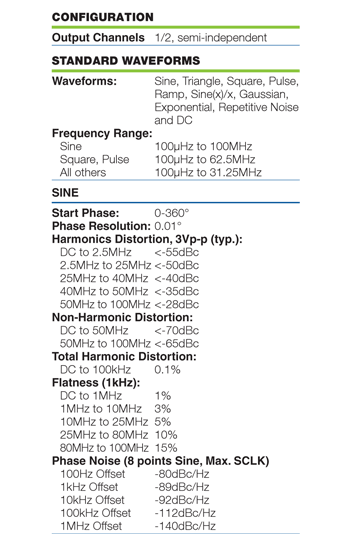

Thông số kỹ thuật
