14 Bit amplitude resolution
11 digits frequency resolution (limited by 1µHz)
512k standard waveform memory (1M option)
10Vp-p into 50Ω, double into high impedance
AM, FM, Arbitrary FM, FSK, Ramped FSK modulation
Comprehensive memory management
1 ppm clock accuracy and stability
Linear and logarithmic sweep
Single Channel 50MS/s waveform generator
Sine waves to 25MHz, Square to 15MHz
SINE OUT to 50MHz, 1Vp-p into 50Ω
11 Built-in popular standard waveforms
User friendly and menu driven 3.8” color LCD display
LAN, USB and GPIB interfaces
Multi-Instrument synchronization
Free ArbConnection software, IVI and MATLAB drivers

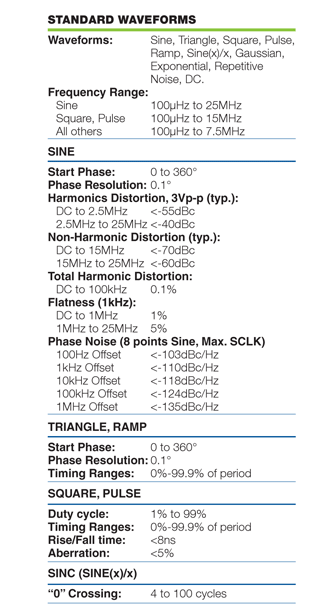

Thông số kỹ thuật
