DC output
4Vp-p into 50Ω with 350MHz bandwidth, Differential DC output
-20 to +10 dBm into 50Ω with >500MHz bandwidth, RF AC output
AM, FM, FSK, PSK, ASK, Amp. Hop, Freq. Hop, Sweep & Chirp
Powerful pulse composer for analog, digital and mixed signals
32 Bit LVDS Parallel / Separate Outputs (Option D)
Smart trigger enables trigger hold-off, detect, wait, abort and restart
Advanced sequencer for step, loop, nest and jumps scenarios
Dual Channel 1.25GS/s,14 bit waveform generator, configurable as separate or synchronized channels
Inter-channel skew control from -3 ns to +3 ns with 10 ps resolution
500MHz sine and 350MHz square waves
16M waveform memory, 32M memory optional
3 selectable output paths:
2Vp-p into 50Ω with 500MHz bandwidth, Differential
Two differential markers with programmable positions, width&levels
Two instrument synchronization to form a multi-channel system
User friendly 4” color LCD display
Remote control through LAN, USB and GPIB
Store/recall capability on memory stick or 4GB internal memory
LXI Class C compliant

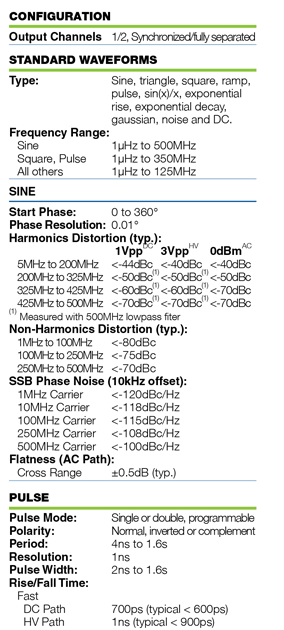

Thông số kỹ thuật
