Feature
- Small in size as two third as the standard type gauge.
- UKT is for tension, UKK is for compression.
- Peak hold function.
- Zero adjustment for tare weight.
Specifications for UK series Compact Model Mechanical Force Gauge
| Model |
UKT series |
UKK series |
| Accuracy |
+/-0.3% F.S. |
| Direction of measurement |
For tension only |
For compression only |
| Stroke |
10mm |
| Unit of measurement |
Refer to the table below |
| Reading method |
Real-time track or Peak-hold |
| Divisions |
100 lines* |
| Operating temperature |
0 to +40 degree Celcius |
| Weight |
Approx. 300g |
| Accessory |
4 kinds of attachments for tension |
5 kinds of attachments for compression |
| Inspection certificate, Instruction manual, Carrying case |
* 30N, 300N, 3K, 30K, 30lb : 120 divisions
Model Table of UK series Compact Model Mechanical Force Gauge
| UKT series (For tension only) / UKK series (For compression only) |
| Model |
Capacity |
1 division |
Thread |
| UKT-20N |
UKK-20N |
20N |
0.2N |
M6 |
| UKT-30N |
UKK-30n |
30N |
0.25N |
| UKT-50N |
UKK-50N |
50N |
0.5N |
| UKT-100N |
UKK-100N |
100N |
1N |
| UKT-200N |
UKK-200N |
200N |
2N |
| UKT-300N |
UKK-300N |
300N |
2.5N |
| Model(NOT available in Japan) |
Capacity |
1 division |
Thread |
| UKT-2K |
UKK-2K |
2kgf |
20gf |
M6 |
| UKT-3K |
UKK-3K |
3kgf |
25gf |
| UKT-5K |
UKK-5K |
5kgf |
50gf |
| UKT-10K |
UKK-10K |
10kgf |
100gf |
| UKT-20K |
UKK-20K |
20kgf |
200gf |
| UKT-30K |
UKK-30K |
30kgf |
250gf |
| Model(NOT available in Japan) |
Capacity |
1 division |
Thread |
| UKT-5lbf |
UKK-5lbf |
5lbf |
0.05lbf |
M6 |
| UKT-10lbf |
UKK-10lbf |
10lbf |
0.1lbf |
| UKT-20lbf |
UKK-20lbf |
20lbf |
0.2lbf |
| UKT-30lbf |
UKK-30lbf |
30lbf |
0.25lbf |
| UKT-50lbf |
UKK-50lbf |
50lbf |
0.5lbf |
*In Japan, only N models are allowed to use due to the Measurement Law of Japan.

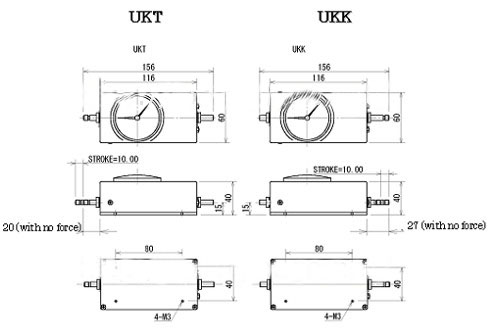

Dimensions
（Unit:mm）
