The DAP 840 has all of the features needed for an entry-level data acquisition or control application with light real-time processing, and provides all of the benefits of onboard intelligence.
has an onboard 486 processor
comes with 8MB of DRAM onboard memory
uses a PCI bus for PC-based platforms
transfers data to PC at high rates – up to 800k samples per second
allows real-time processing
offers low latency – 0.2 ms task time quantum – for fast response
increases sampling period resolution to 50 ns
provides onboard emulation of DSP routines
samples or updates the digital section at up to 800k values per second
provides 14-bit A/D converter resolution
samples analog inputs at up to 800k samples per second
updates analog outputs at up to 400k samples per second each
complies with the EMC Directive 89/336/EEC

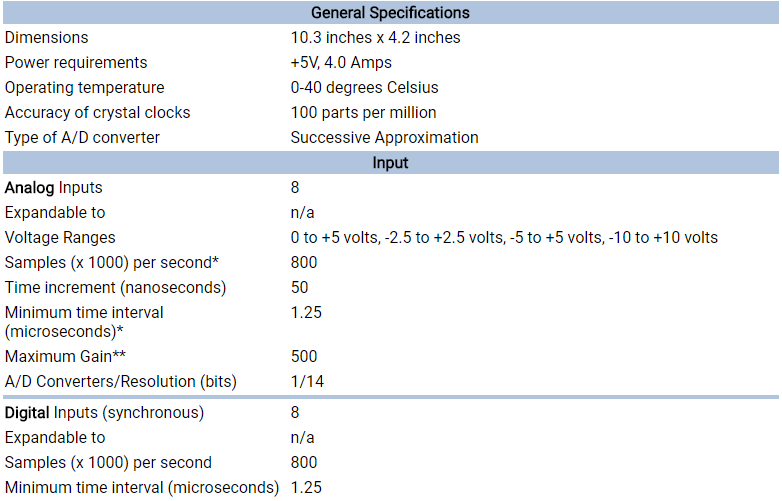

Thông số kỹ thuật
