has an onboard 233 MHz Intel Pentium processor
comes with 128M of DRAM onboard memory
offers up to 16 channels per board and can acquire 14-bit data at
800k samples per second on each of 4 channels
625k samples per second on each of 8 channels
is compatible with other a-Series boards
uses a PCI bus for PC-based platforms
transfers data to PC at high rates – up to 3200k samples per second
allows fast real-time processing
provides 14-bit A/D converter resolution
provides input voltage ranges of +/-5 volts or +/-10 volts
samples analog inputs at up to 5M samples per second
complies with the EMC Directive 89/336/EEC
There is one current DAP 5380a model: the DAP 5380a/526.
The DAP 5380a model, optimized for high-speed analog input, works well in simultaneous sampling applications. By grouping a number of these boards into a single synchronized system, you can simultaneously sample high-speed inputs in groups. Each DAP 5380a board offers up to 16 channels per board and can acquire 14-bit data.

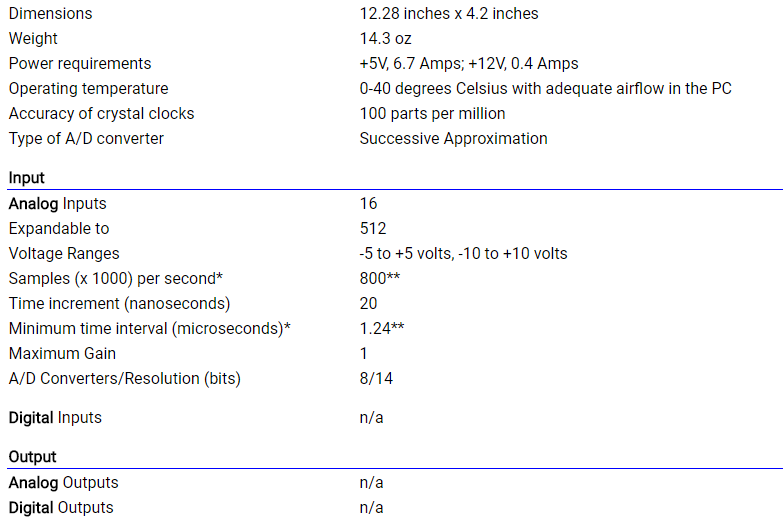

Thông số kỹ thuật
