The DAP 5400a model, a board optimized for simultaneous sampling at extreme speeds, has eight A/D converters that sample simultaneously with 14-bit resolution at 1.25M samples per second each, for a total throughput of 10M samples per second. Or for higher speeds per channel, each board can sample each of 4 channels at 2M samples per second. The board, based on the proven DAP 5200a design, has four times the memory, at 128MB, to balance the higher sampling rate.
The DAP 5400a
has an onboard 400 MHz AMD K6-III+ processor
comes with 128M of DRAM onboard memory
offers up to 16 channels per board and can acquire 14-bit data at
2M samples per second on each of 4 channels
1.25M samples per second on each of 8 channels
625k samples per second on each of 16 channels
is compatible with other a-Series boards
uses a PCI bus for PC-based platforms
transfers data to PC at high rates – up to 5000k samples per second
allows fast real-time processing
provides 14-bit A/D converter resolution
provides input voltage ranges of +/-5 volts or +/-10 volts
samples analog inputs at up to 10M samples per second
complies with the EMC Directive 89/336/EEC

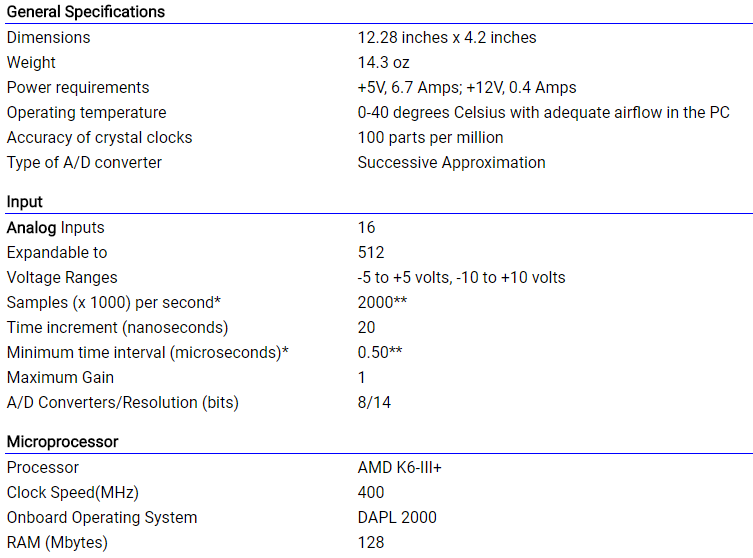

Thông số kỹ thuật
