General Purpose Pulse Generators AV-1011B1-B Avtech Pulse

Mã sản phẩm: AV-1011B1-B
Sử dụng cho Model:
Hãng SX: Avtech Pulse
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng
General Purpose Pulse Generators
Model: AV-1011B1-B
Hãng: Avtech Pulse


Liên Hệ Hỗ Trợ

    • SĐT: 0984 843 683

    • Mail: info@ttech.vn

      • Zalo: 0984.843.683

Thông tin sản phẩm

The more-specialized AV-1011B1-B and AV-1011B3-B models offer faster rise and fall times (100V / 2 ns for the AV-1011B1-B, and 30V / 0.5 ns for the AV-1011B3-B). These faster models require a 50 Ω load.

Model AV-1010-B is a fully-featured general-purpose instrument that can be controlled from the userfriendly front-panel keypad and LCD, or by the IEEE-488.2 GPIB and RS-232 computer-control ports. The

amplitude of the AV-1010-B can be varied up to ±100V, and the pulse width is adjustable from 20 ns to 10 ms. The output impedance (i.e., the internal resistance in series with the output) can be switched

between 2 Ω and 50 Ω (regardless of the output impedance setting, the load impedance must be 50Ω or higher). The rise and fall times are fixed at less than 10 ns (20%-80%).

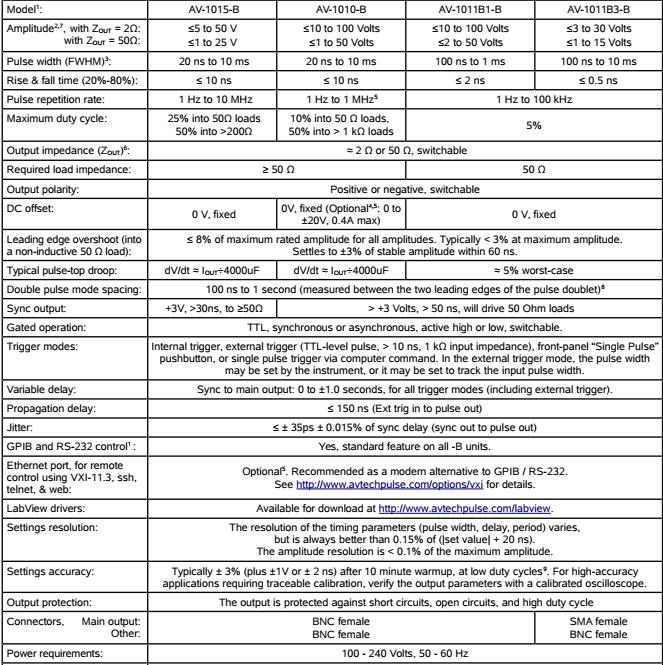

Thông số kỹ thuật



AV-1011B1-B-chinh-hang-o-dau-tot
