Model AVR-9C-B can drive even lower load impedances, providing up to 12 Volts into a load of 1Ω or higher (i.e., up to 12 Amps of current). The rise and falls times are 50 ns, and the pulse width is variable from 200 ns to 200 us. The PRF is variable from 0 to 5 kHz, and the maximum output duty cycle is 10%.
Model AVR-9D-B has the highest current rating, providing amplitudes of up to 20V into 1Ω (i.e., up to 20 Amps of current). The rise and falls times are 80 ns, and the pulse width is variable from 200 ns to 200
us. The PRF is variable from 0 to 5 kHz, and the maximum output duty cycle is 10%.
The AVR-9A and AVR-9B series both provide a frontpanel BNC connector for the main output.

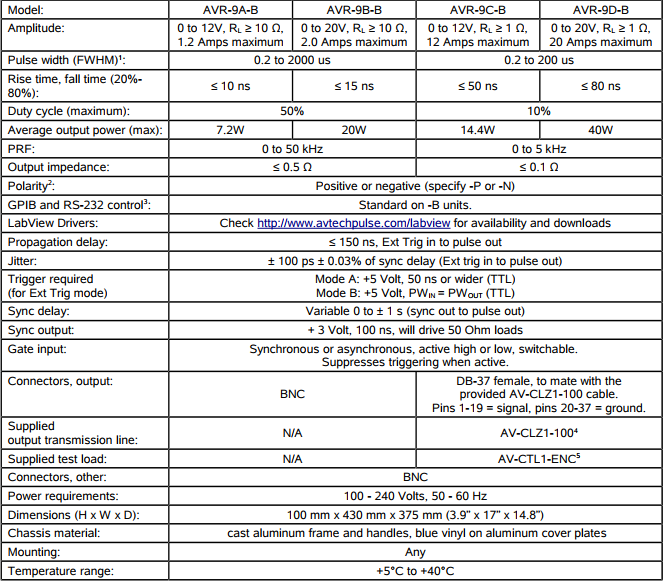

Thông số kỹ thuật
