- Measurement frequency：1kHz±0.1％ (Sinusoidal waveform)
- 5-terminal measurement method
- HI/LO/GO output installed microprocessor
- 3½Digit (1999) Digital display
- By either GP-IB or RS-232C, all the functions are remote-controllable(option)
- CE marking
- Contact-check is equipped as standard function
- During the measurement time：1.2msec.
- Wide measurement range from micro capacity to large capacity (range 20pF～200μF)
- The built-in printer output (based on Centronics)
- Can be printed such as measuring value, σ,3σ, max, min, date, time while measurement

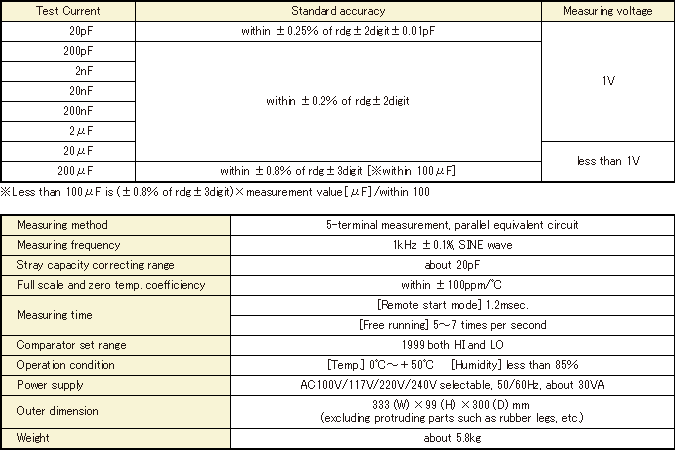

Thông số kỹ thuật
