The AVL series provides high amplitude (to 450V) pulse outputs with rise times as low as 1 ns and fall times of 2 ns, pulse repetition frequencies as high as 50 kHz, and maximum pulse widths variable from 3 to 400 ns. The AVL-AV-1-B provides peak amplitudes of 100 Volts with pulse widths variable from 3 to 100 ns (and to 400 ns with a wide pulse option). The rise time is 1 ns, the fall time is 2 ns, and the maximum pulse repetition frequency (PRF) is 50 kHz. The AVL-AV-1-W-B offers operation at wider pulse widths (5-400 ns), with 2 ns rise times.
The AVL-2A-B provides peak amplitudes of 160 Volts with pulse widths variable from 3 to 100 ns. Rise times are 2 ns, with PRFs to 20 kHz. The AVL-2A-W-B offers wider pulses (3-400 ns). The AVL-2D-B operates to 240V, with pulse widths of 10 to 100 ns, rise times of 1.5 ns, and fall times of 2 ns.

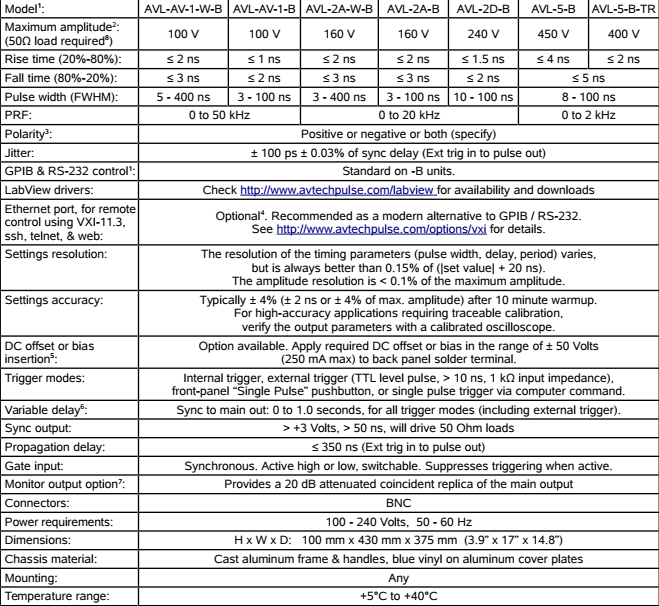

Thông số kỹ thuật
>>> AVL-AV-1-W-B chính hãng
