Laser Diode Driver AVOZ-E3-B Avtech Pulse

Mã sản phẩm: AVOZ-E3-B
Sử dụng cho Model:
Hãng SX: Avtech Pulse
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng
Laser Diode Driver
Model: AVOZ-E3-B
Hãng: Avtech Pulse


Liên Hệ Hỗ Trợ

    • SĐT: 0984 843 683

    • Mail: info@ttech.vn

      • Zalo: 0984.843.683

Thông tin sản phẩm

The AVOZ-E models are high-voltage, high-current pulsers ideal for testing high-current laser diode arrays, as well as testing multiple identical lower-current devices (for instance, production testing of attenuators). All models offer pulse widths adjustable from 0.5 to 10 us, and average output powers of up to 100 Watts. The AVOZ-E1-B generates up to 50V into a 1 Ohm load, for a maximum current of 50 Amps, at repetition rates of up to 10 kHz.

The AVOZ-E2-B generates up to 100V into a 1 Ohm load, providing up to 100 Amps, at repetition rates up to 10 kHz. The AVOZ-E3-B generates up to 250V into a 1 Ohm load, providing up to 250 Amps, at repetition rates up to 1 kHz. The AVOZ-E4-B generates up to 250V into a 2 Ohm load, providing up to 125 Amps, at repetition rates up to 3 kHz. The AVOZ-E5-B generates up to 500V into a 2 Ohm load, for a maximum current of 250 Amps, at repetition rates of up to 500 Hz.

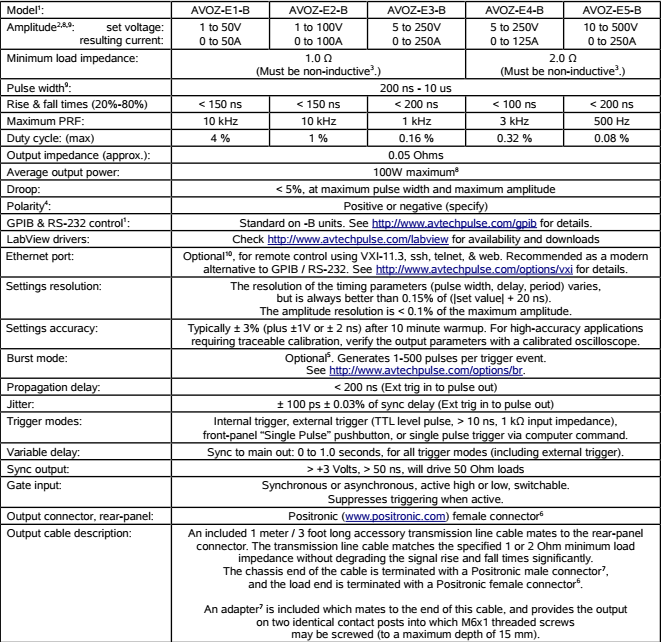

Thông số kỹ thuật


thong-tin-AVOZ-E3-B
