Very High Speed Pulse Generators
Model: AVL-AV-1-B
Hãng: Avtech Pulse


Liên Hệ Hỗ Trợ

    • SĐT: 0984 843 683

    • Mail: info@ttech.vn

      • Zalo: 0984.843.683

Thông tin sản phẩm

The AVL series provides high amplitude (to 450V) pulse outputs with rise times as low as 1 ns and fall times of 2 ns, pulse repetition frequencies as high as 50 kHz, and maximum pulse widths variable from 3 to 400 ns. The AVL-AV-1-B provides peak amplitudes of 100 Volts with pulse widths variable from 3 to 100 ns (and to 400 ns with a wide pulse option). The rise time is 1 ns, the fall time is 2 ns, and the maximum pulse repetition frequency (PRF) is 50 kHz. The AVL-AV-1-W-B offers operation at wider pulse widths (5-400 ns), with 2 ns rise times. The AVL-2A-B provides peak amplitudes of 160 Volts with pulse widths variable from 3 to 100 ns. Rise times are 2 ns, with PRFs to 20 kHz. The AVL-2A-W-B offers wider pulses (3-400 ns). The AVL-2D-B operates to 240V, with pulse widths of 10 to 100 ns, rise times of 1.5 ns, and fall times of 2 ns. The maximum PRF is 20 kHz. The AVL-5 family provides output amplitudes variable from up to 450 Volts, with pulse widths variable from 8 to 100 ns, with 4 ns rise time and 5 ns fall times, and
repetition rates to 2 kHz. (The AVL-5 has a small “backporch” transient which is < 15% of the set amplitude, and may last as long as 150 ns after the rising edge. It is most noticeable at narrow pulse width settings.

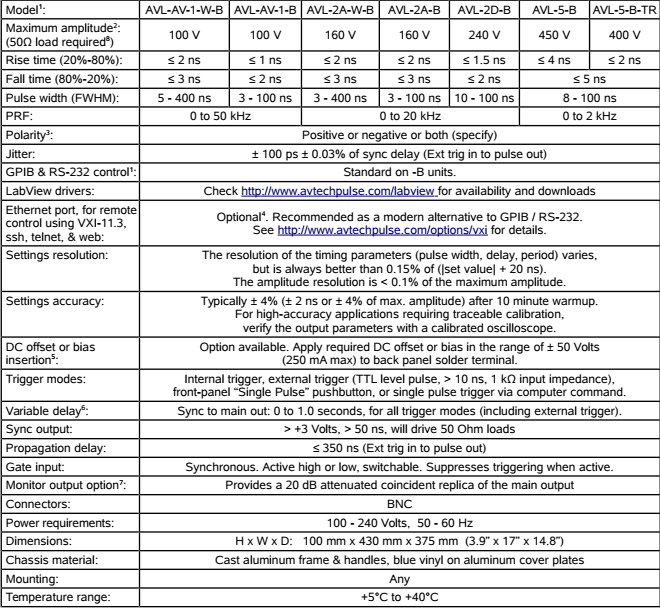

Thông số kỹ thuật



AVL-AV-1-B-o-ha-noi
