Very High Speed Pulse Generators AVP-AV-1S Avtech Pulse

Mã sản phẩm: AVP-AV-1S
Sử dụng cho Model:
Hãng SX: Avtech Pulse
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng
Very High Speed Pulse Generators
Model: AVP-AV-1S
Hãng: Avtech Pulse


Liên Hệ Hỗ Trợ

    • SĐT: 0984 843 683

    • Mail: info@ttech.vn

      • Zalo: 0984.843.683

Thông tin sản phẩm

The AVP-AV-1S family offers narrow pulses (200 ps to 4 ns) at amplitudes up to 5V and repetition rates up to 1 MHz, with extremely fast rise times (60 ps, 20%-80%). AC-powered benchtop versions and DC-power modules are both available in this family.

The AVP series of pulse generators offer the fastest rise times available in the Avtech product line, with rise times as low as 50 ps for 10V units, and 150 ps for 40V units. The AVP-3SA family provides uniquely low rise times of 50 ps, pulse widths variable from 0.2 to 4 ns, amplitudes of up to 10 Volts, and pulse repetition frequencies of up to 1 MHz. The similar AVP-AV-1S family offers 60 ps, 5 Volt operation, and the AVP-2SA family offers 40 ps, 5 Volt operation.
The AVP-AV-1 family provides 10V pulses with 100 ps rise times. The AVP-AV-HV2 family has amplitudes to 20V, pulse widths variable from 0.3 to 2 ns (optionally 4 ns), with 100 ps rise times. These two families are also available in the computercontrollable -B format. The high-voltage AVP-AV-HV3 family operates to 40V, with pulse widths variable from 0.4 to 2 ns (optionally 4 ns), and 150 ps rise times. For wide-pulse applications, the AVP-AV-2 family provides output pulse widths variable from 2 to 50 ns at frequencies as high as 50 kHz. With a wide pulse option (-W500) this model will operate in the output pulse width range of 20 to 500 ns. The rise time is 100 ps.

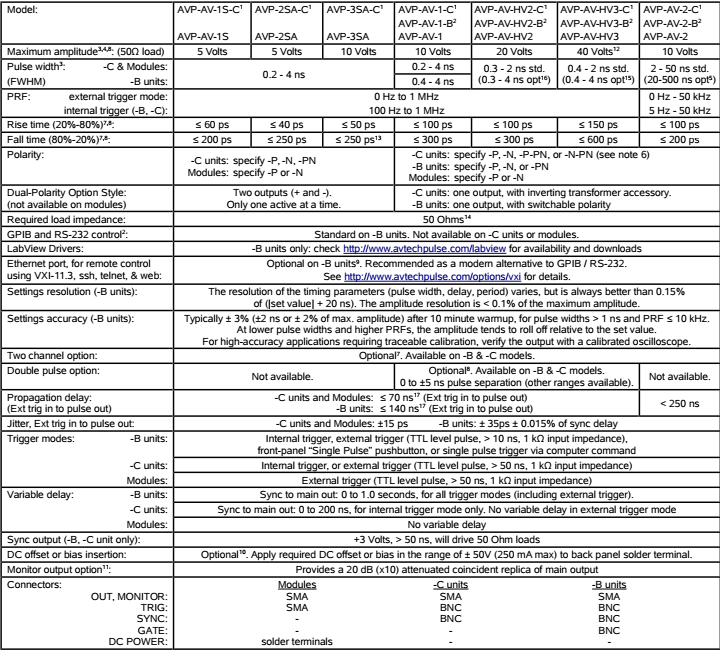

Thông số kỹ thuật

AVP-AV-1S-gia-tot
