Improved temperature control mechanisms
The M6242 enables more precise temperature control, following optimization of mechanisms in the temperature stabilization chamber. Temperature stability improvements mean that precision of the new M6242 surpasses that of its predecessor by 25%, with an accuracy of ±1.5°C when set at -10°C to 100°C, resulting in higher overall yields.
Industry's highest throughput of 42,200UPH
The M6242 supports memory device package types such as BGA and CSP, and its throughput of 42,200 units per hour is more than double that of the company's previous model, M6241. It offers highly efficient device transfer, thanks to optimization of the complex arm mechanisms that sort good and bad devices after testing. The M6242 enhances productivity and slashes overall cost of test.
Greatly enhanced operability
Designed for ease of operation, the M6242's large screen displays a more detailed menu than the previous model. Vital information, including test time and temperature along with visualized switches is provided at-a-glance. This makes the system easier for the operator to run and contributes to shorter operation times.

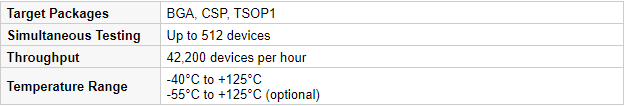

Thông số kỹ thuật
